Advanced Seals for Maximum Protection of In-Wheel Motors

Freudenberg Sealing Technologies contributes to the development of in-wheel motors (IWM) with a patented seal design. From small electric cars to commercial vehicles, these seals allow original equipment manufacturers (OEMs) and engine manufacturers to take full advantage of wheel hub motors. Scalability, high-quality materials and a plug & play concept make the seals highly versatile.

Sealing Solutions from Freudenberg Sealing Technologies

We have developed two patented seal designs specifically for in-wheel motors. The key feature they share is the speed-dependent adjustment of the sealing performance and friction by means of a special geometry. The design is based on the anti-proportional behavior of speed and the ingress of dirt.

The seal lip is positioned so that it becomes increasingly detached from the contact surface or, optionally, lifts off completely as the centrifugal forces increase.

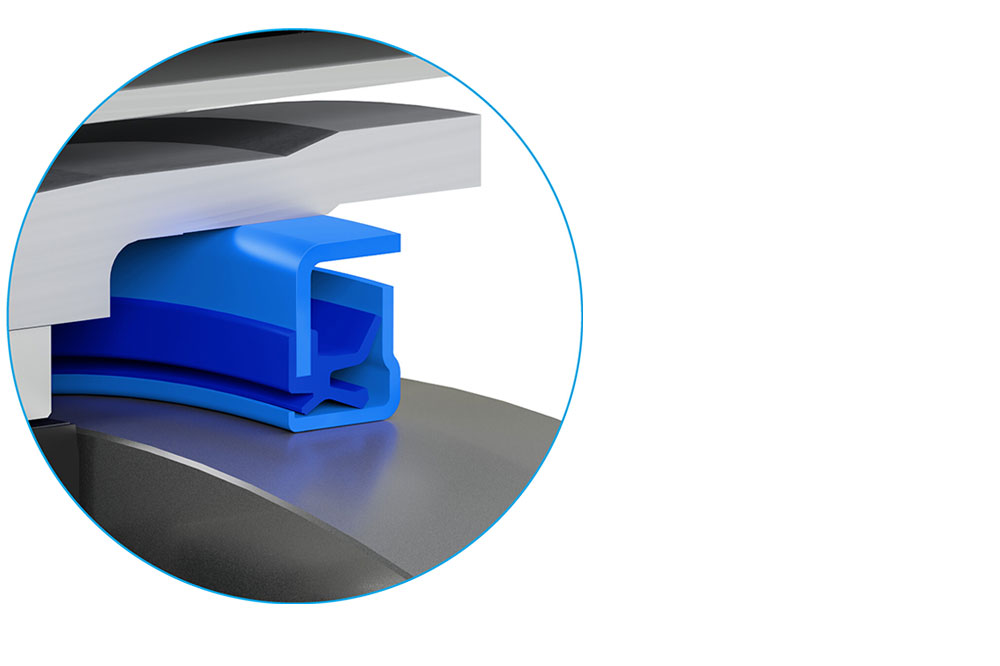

Cassette Seal for Heavy Duty Applications

Closed cassette system with a double sealing lip and mating contact surface
Coordinated materials made of stainless steel and special rubber compounds
No new machining of shaft required during repair work
Reduced total cost of ownership

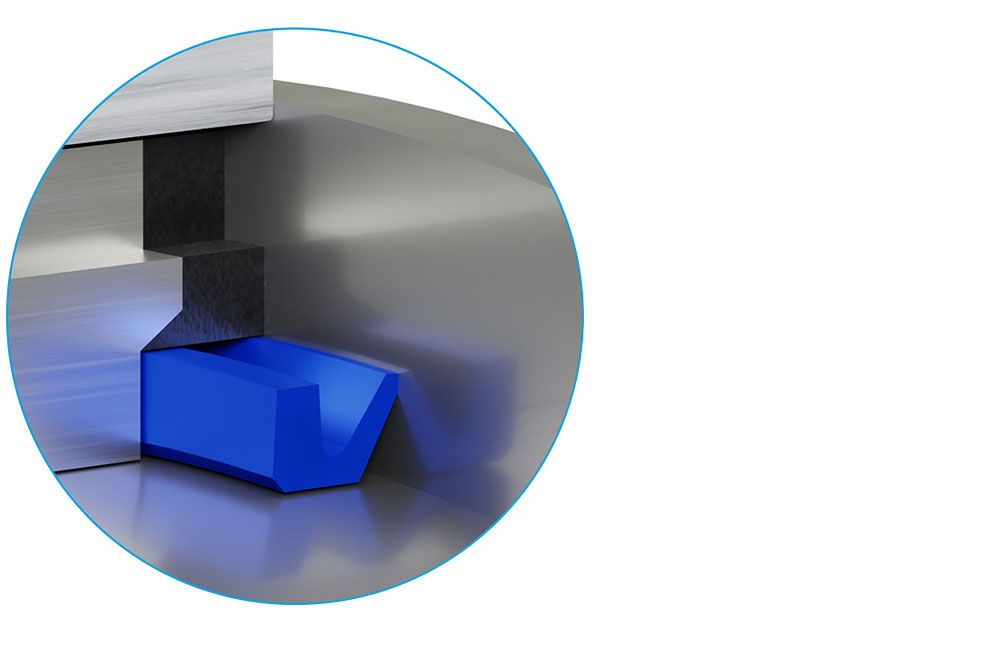

V-Seal for Automotive & Truck Applications

Open system for maximum flexibility
Plug & play for installation and service
High-quality HNBR material for high temperatures, high speeds and low friction
Attractive system costs

Your Benefits

Stable even at high temperatures and speeds
Scalable for installation space diameters from 1 to 530 mm
Superior protection
Maximum durability in the class
High compensation of axial rotor-stator offset
Water protection up to protection class IP67
Extended service life of the seal optimizes operating efficiency and maintenance costs
Depending on configuration, the sealing systems are virtually maintenance-free

Your partnership with Freudenberg Sealing Technologies

Our intensive collaboration with reputable manufacturers of in-wheel motors goes back to 2012 and we can draw on a wealth of expertise in seal development. Let us join your development process at an early stage so you can benefit from our experience and avoid unnecessary adjustment loops. With sealing solutions from Freudenberg Sealing Technologies, you can shorten your development process and benefit from durable, reliable motors for every type of application.
