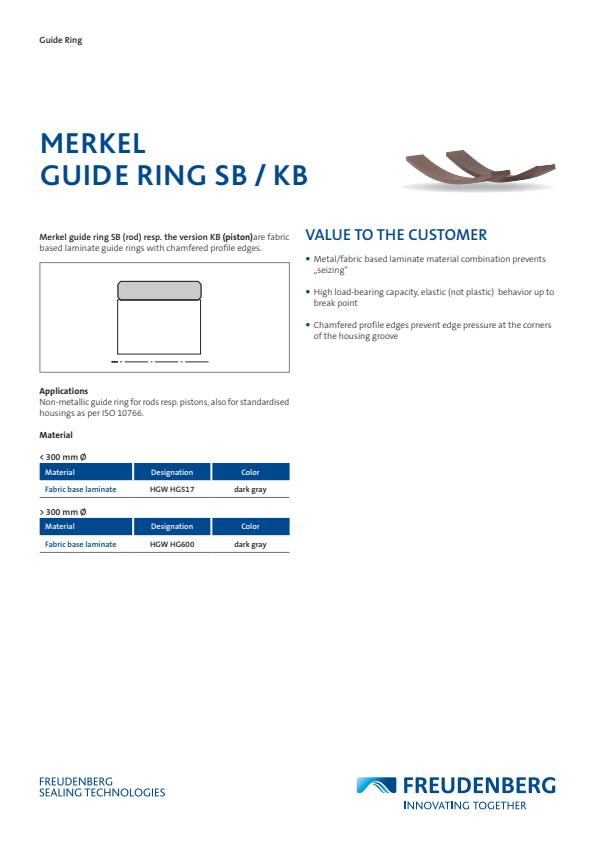

Merkel® guide ring SB / KB

The Merkel guide rings SB (rod) and KB (piston) are fabric-based laminate rings with chamfered edges, suitable for non-metallic applications in rods and pistons, conforming to ISO 10766 standards. They offer high load-bearing capacity and prevent seizing. Operating conditions vary with different fluids and temperatures. Surface finish and tolerances are crucial for performance, with specific guidelines provided for installation and load distribution.

English | PDF | 327 KB
