Freudenberg Produces a World-Class Solution for Tractor Troubles

“We realized in 2011 that even when supplying our customers with best-in-class Cassette-S3 seals, they were still seeing warranty issues,” Cucco said. “Farmers working in fields where water and mud were a constant issue, like rice fields, needed a higher level of axle sealing to prevent contamination and oil leaks in the wheel hub. These leaks were costly, time consuming and a source of customer dissatisfaction. In that sense, they were very expensive.”

By tracking warranty and failure analysis data on behalf of their customer, Freudenberg engineers discovered two issues. First, they needed to provide better assistance in teaching the customer’s plant workers how to properly install cassette seals, the complex, labyrinth-like components that seal dirt, water and grime out of mobile machinery axles. Proper installation was essential to avoid seal failures and fluid contamination in the field. An extended trip to the customer’s manufacturing plant helped resolve this challenge.

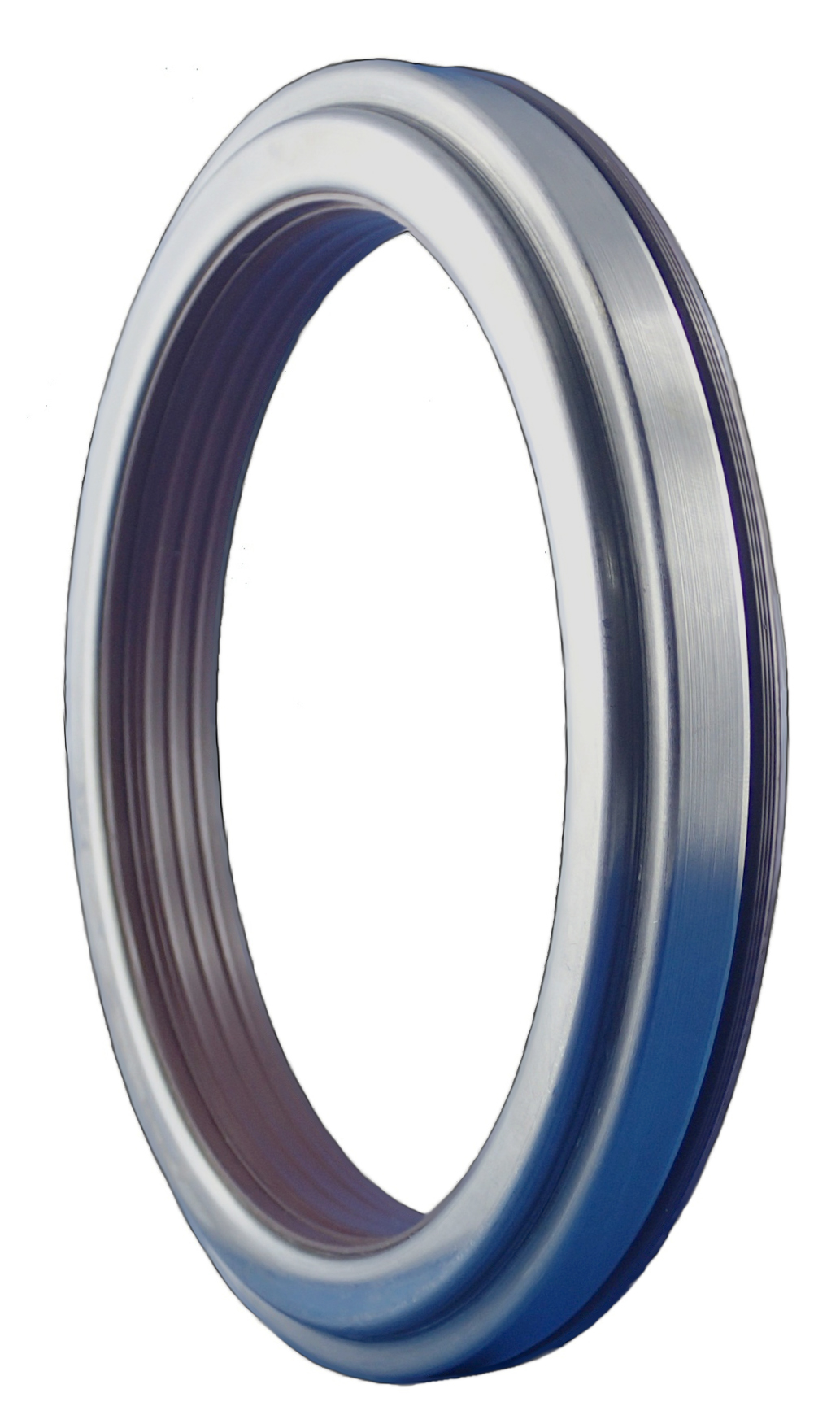

On a more significant level, however, Freudenberg also found that the double-lip design of the Cassette-S3 seal, while providing best-in-class sealing against dirt ingress in tractor wheel hubs in most applications, did not hold up to constant exposure to wet, muddy conditions. A new design was necessary that would take the sealing function and contamination protection of the Cassette-S3 to a more robust level. Freudenberg’s sales managers and product engineers considered a number of cassette seal solutions before settling on a complex, three-component design that protects all functional parts – the sealing lips, the optimized lip working surface, dirt exclusion lips, dedicated counter-surfaces and internal lubrication – inside a closed design. This new Cassette-S4 would guarantee a safer installation, would eliminate the customer’s need to install additional sealing components and would likely improve component longevity.

Field tests over two years

In 2013, Freudenberg representatives had enough data to present a solid case for using the Cassette-S4 on the customer’s new row crop tractor platforms. The two companies agreed upon extensive field testing of the Cassette-S4 and ongoing root cause analysis of the incumbent Cassette-S3 to address the challenge. Field tests took place over two years.

“Customer field tests confirmed Freudenberg’s bench test results that the Cassette-S4 lasted four times longer in harsh agricultural conditions than its predecessor,” said Stefano Miletto, plant manager at Freudenberg’s Northfield plant in the United States. “The results exceeded the customer’s expectations.”

In 2016, a team of engineers and sales managers traveled to the customer’s product engineering center where they presented the Casssette-S4 to company representatives in a series of highly collaborative meetings. While customer representatives still evaluated other axle sealing solutions during the meeting, the longevity and performance of the Cassette-S4 could not be beat. The Cassette-S4 provided a sealing solution worthy of the toughest treatment the customer’s tractors would endure.

Freudenberg engineers have been heavily focused on improving cassette seal performance in agricultural applications for nearly a decade, said Dave Burgess, Senior Sales Director, Freudenberg, and the Cassette S-4 is the result.

“We are completely focused on product quality. Our customer is completely focused on product quality. This program brought us together, allowed us to demonstrate our sealing expertise and provided a solution that has wide application to a lot of tough environmental challenges,” Burgess said.

“Demand for row crop tractors is very high throughout the world,” he added. “We are proud to support our customer with a development approach that met their global requirements.”

Production of the Cassette-S4 seal in the Americas will start to ramp up within the next two years at the company’s Northfield facility. In the meantime, production of the Cassette-S4 in Luserna has ramped up significantly to meet new demands.
